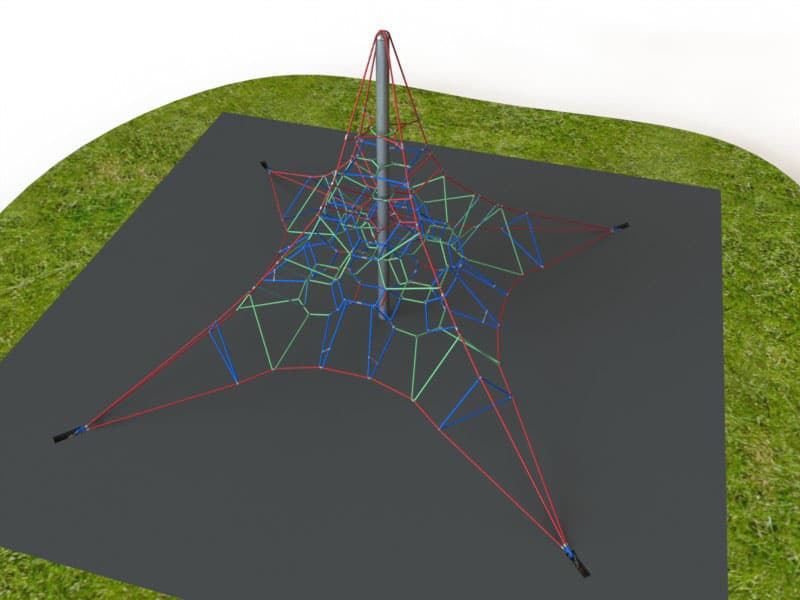

 Red, Green and Blue 3D Render.jpg)
Activity Net (4M)
This product is no longer available.
Please take a look at our latest Active Play products here.
Our product code: TP-AP-PLA-AN4

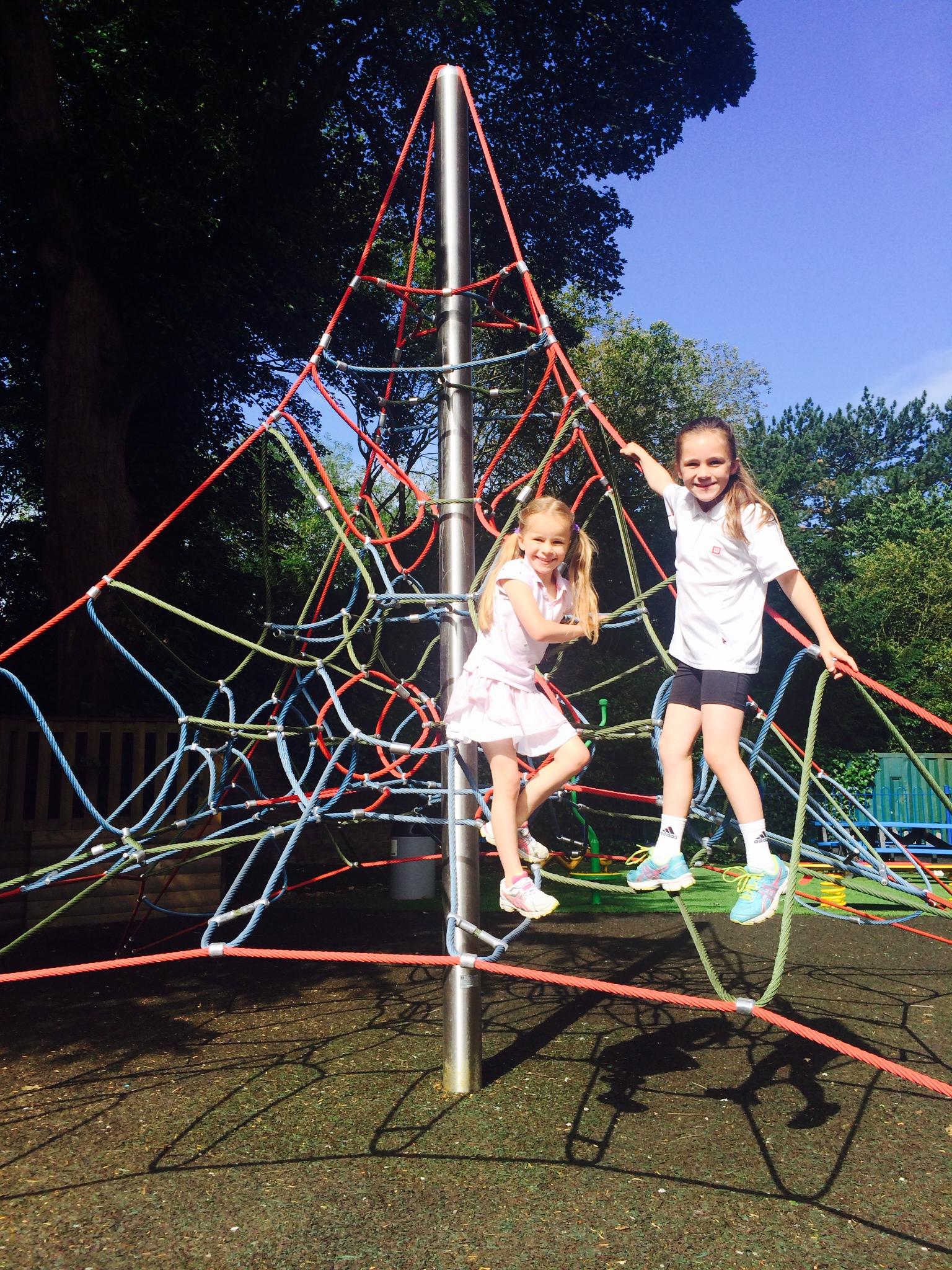

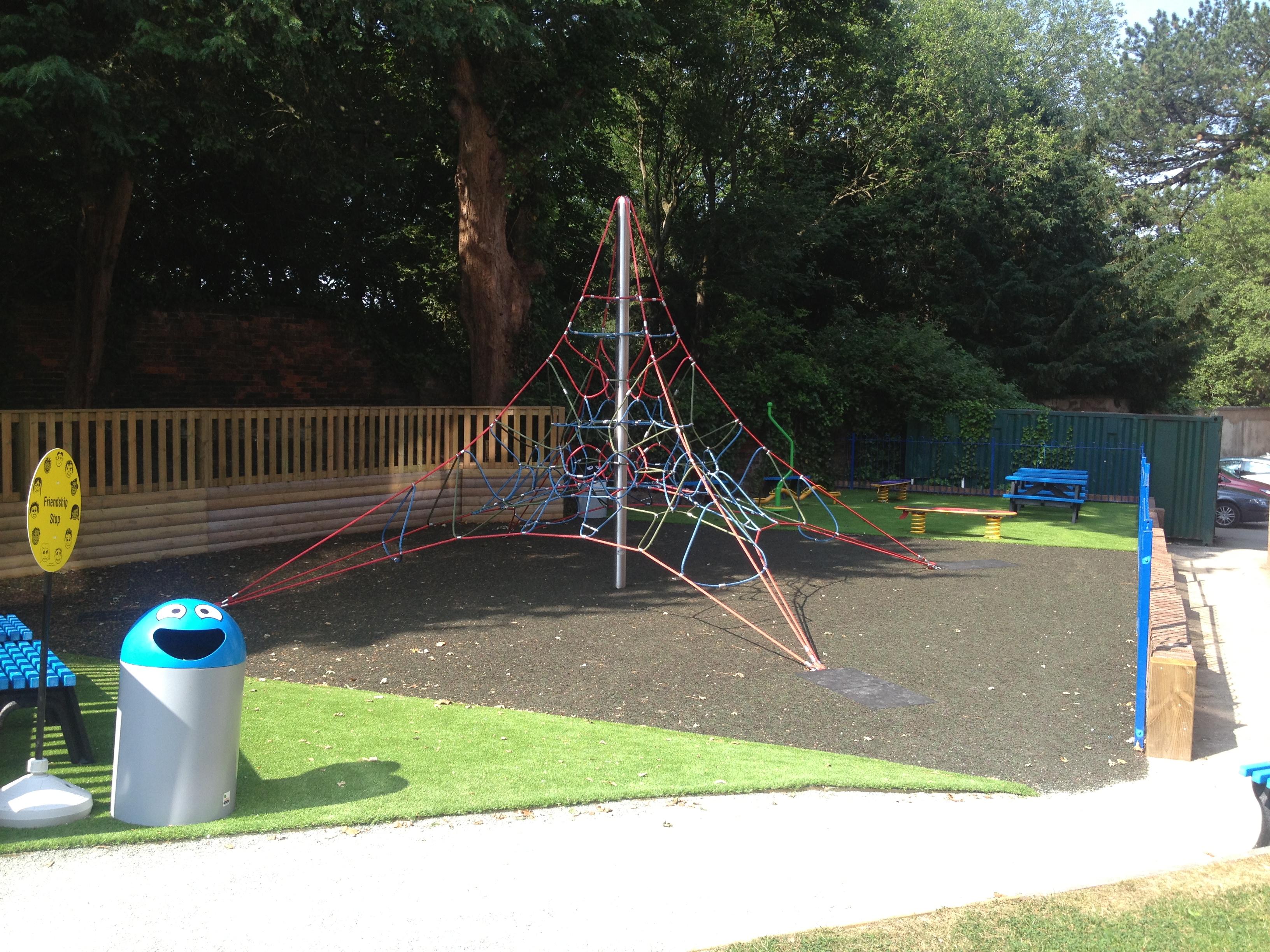

Our 4M Activity net is an impressive playground structure! The activity net provides various physical challenges including climbing, agility and balance. It also develops upper and lower body strength. The challenging nature of the structure also provides opportunities for self learning. The bravest and most capable children will benefit from improved self esteem by conquering the summit!
- Technical Details
- Associated Documents
- Material Guarantees
Technical Details
- Size (L x W x H): 6610mm x 6610mm x 4230mm
- Critical fall height: 0.62M
- Overall size including fall space: 9610mm x 9610mm
- Minimum safety surfacing required*: 90.25M²
- Ropes: Ø18mm 6 strand wire with braided nylon sheath
- Mast: 5” diameter stainless steel pipe with 3.5mm wall
*May not be required if there is an existing impact absorbing surface (such as grass).
Material Guarantees
Steel Reinforced Ropes
